| 手動鉗夾緊力kN |
| 扭矩Nm |
D200 |
D100 |
| 27 |
8.2 |
7.6 |
| 54 |
17.1 |
17.1 |
| 81 |
19.3 |
20.8 |
| 108 |
25.4 |
29.5 |
| 136 |
31.3 |
34.9 |
| 163 |
38.6 |
44.3 |
| 190 |
46.3 |
50.8 |
| 217 |
51.6 |
56.9 |
| 244 |
– |
65.3 |
| 271 |
– |
71.9 |
| 298 |
– |
80.6 |
| 325 |
– |
91.5 |
| 353 |
– |
98.3 |
| 380 |
– |
107.1 |
| 407 |
– |
116.9 |
|

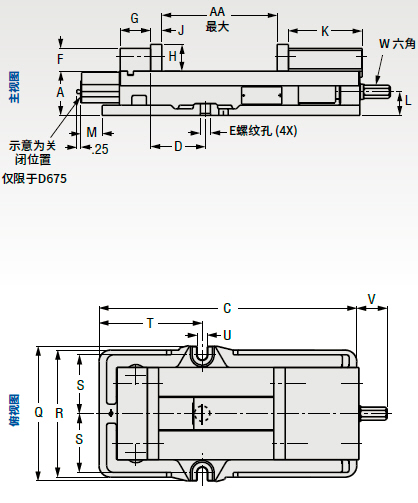

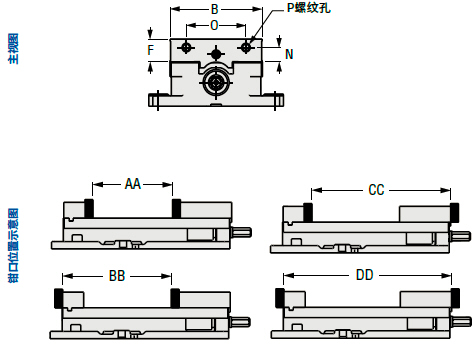

| 參數(shù)表 mm(in) |
|
D200 |
D100 |
| A |
84.1 |
98.4 |
| B |
203 |
254 |
| C |
554.0 |
698.5 |
| D |
119.02 |
149.23 |
| E |
20 |
(0.813) |
| F |
49.91 |
62.61 |
| G |
92.76 |
74.93 |
| H |
55.88 |
74.60 |
| J |
27.31 |
33.53 |
| K |
157 |
219 |
| L |
47.37 |
56.52 |
| N |
30.99 |
41.28 |
| O |
120.7 |
146.1 |
| P |
M16x2.0 |
(3/4-10) |
| Q |
292.1 |
368.3 |
| R |
279.4 |
336.6 |
| S |
125.48 |
157.18 |
| T |
215.9 |
269.0 |
| U |
22.4 |
23.9 |
| V |
60.33 |
42.93 |
| W |
(3/4) |
(1) |
| AA |
254 |
248 |
| AA |
最小0 |
0 |
| BB |
374.1 |
355.6 |
| BB |
最小120.1 |
88.9 |
| CC |
438.4 |
501.7 |
| CC |
最小184.4 |
233.7 |
| DD |
558.5 |
628.7 |
| DD |
最小304.5 |
342.9 |
| 重量kg |
72 |
136 |
|
